Description
The most comfortable mask available. Double flange sealing area made from medical grade silicone for a comfortable fit and optimum facepiece to face seal. Other features include wide field of vision: 5 strap harness and chin support.
Features & Benefits:

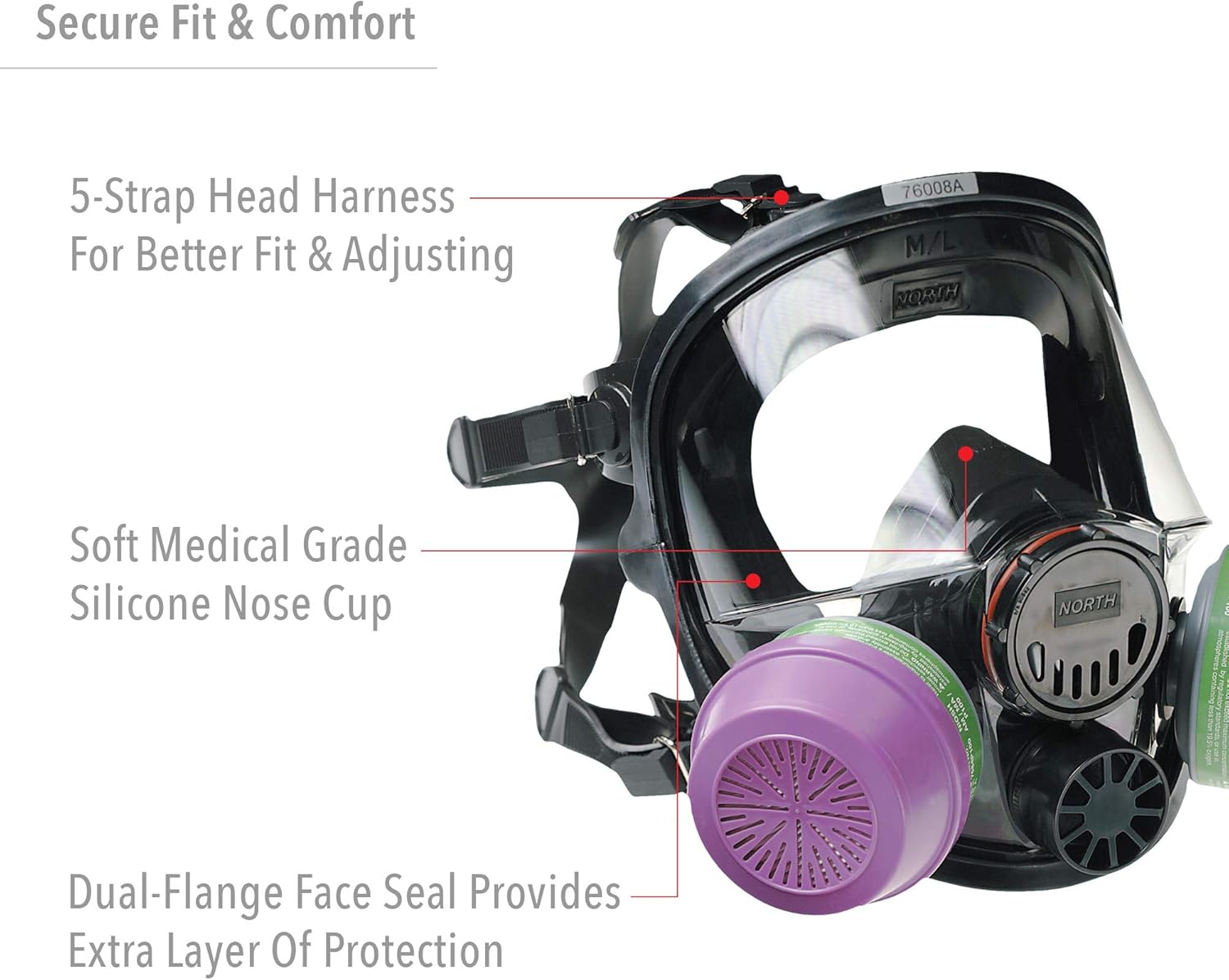

- 100% medical grade silicone sealing area with dual flange for superior fit and comfort. Latex free.

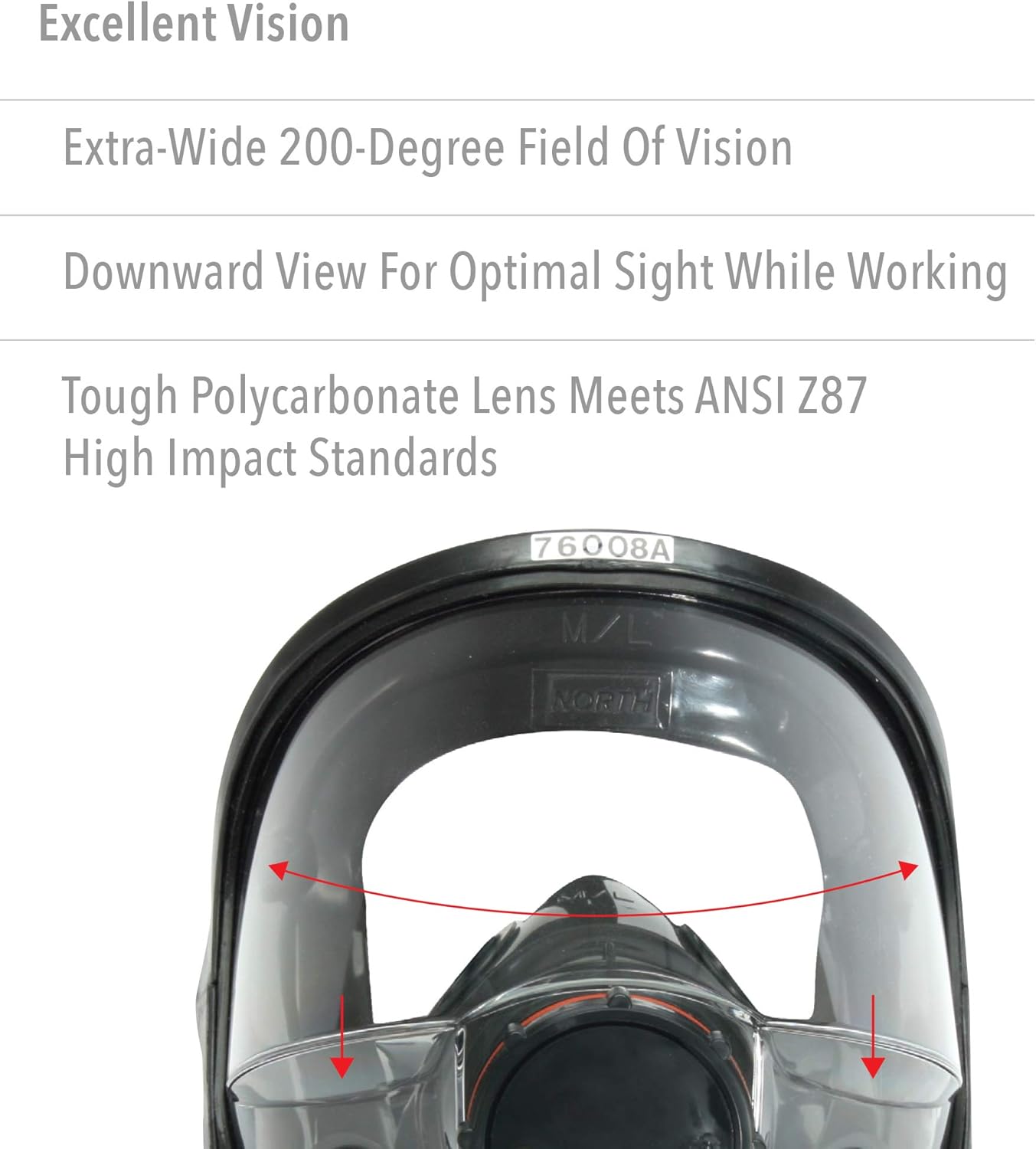

- Lens offers 200 degree field of vision.
- Nose cup standard.
- Reduces fogging and increases worker comfort.
- The most comfortable full facepiece available delivers superior fit and durability.

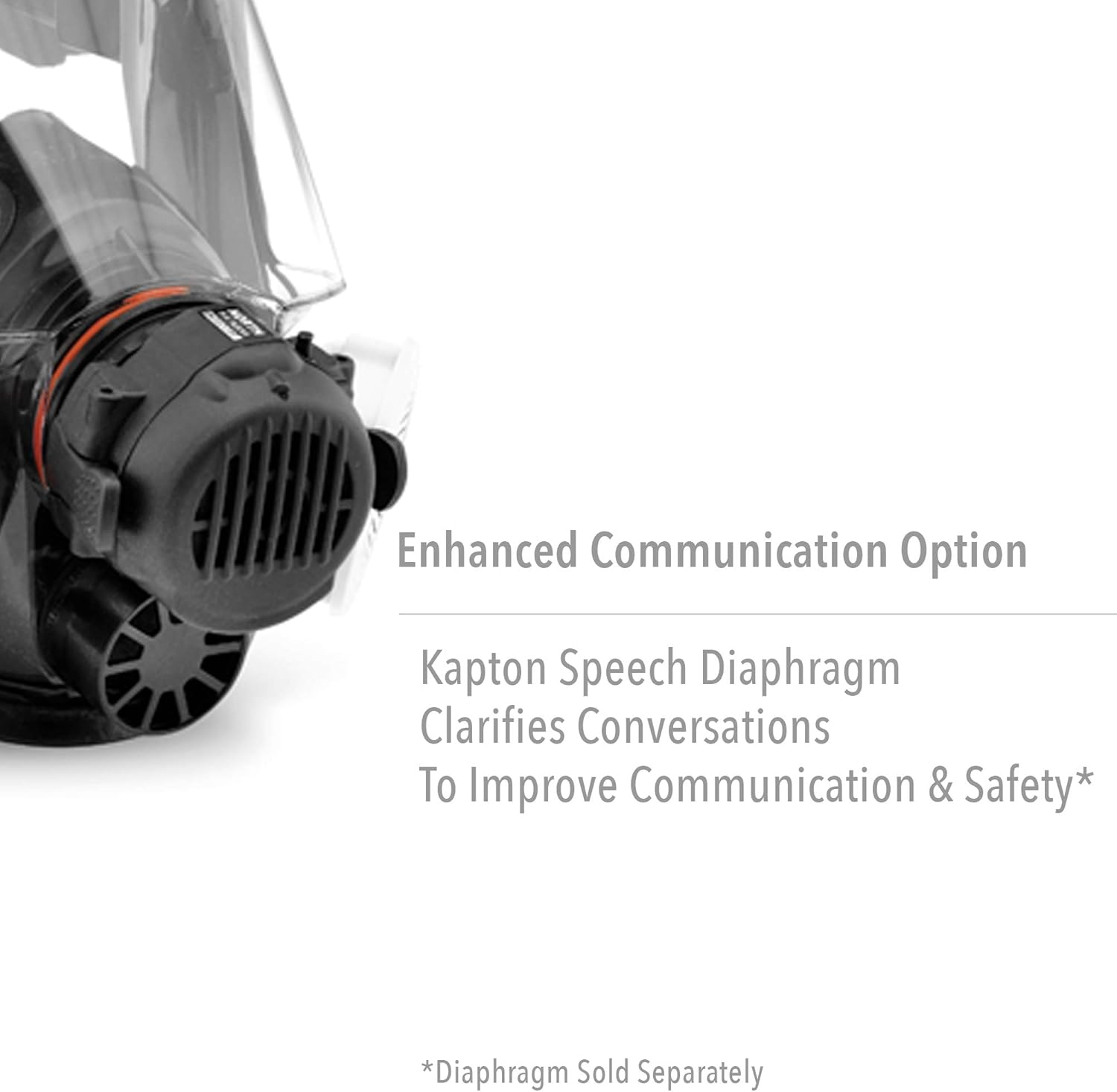

- Speech diaphragm is standard, for better speech clarity
- Polycarbonate lens meets ANSI requirement for high impact

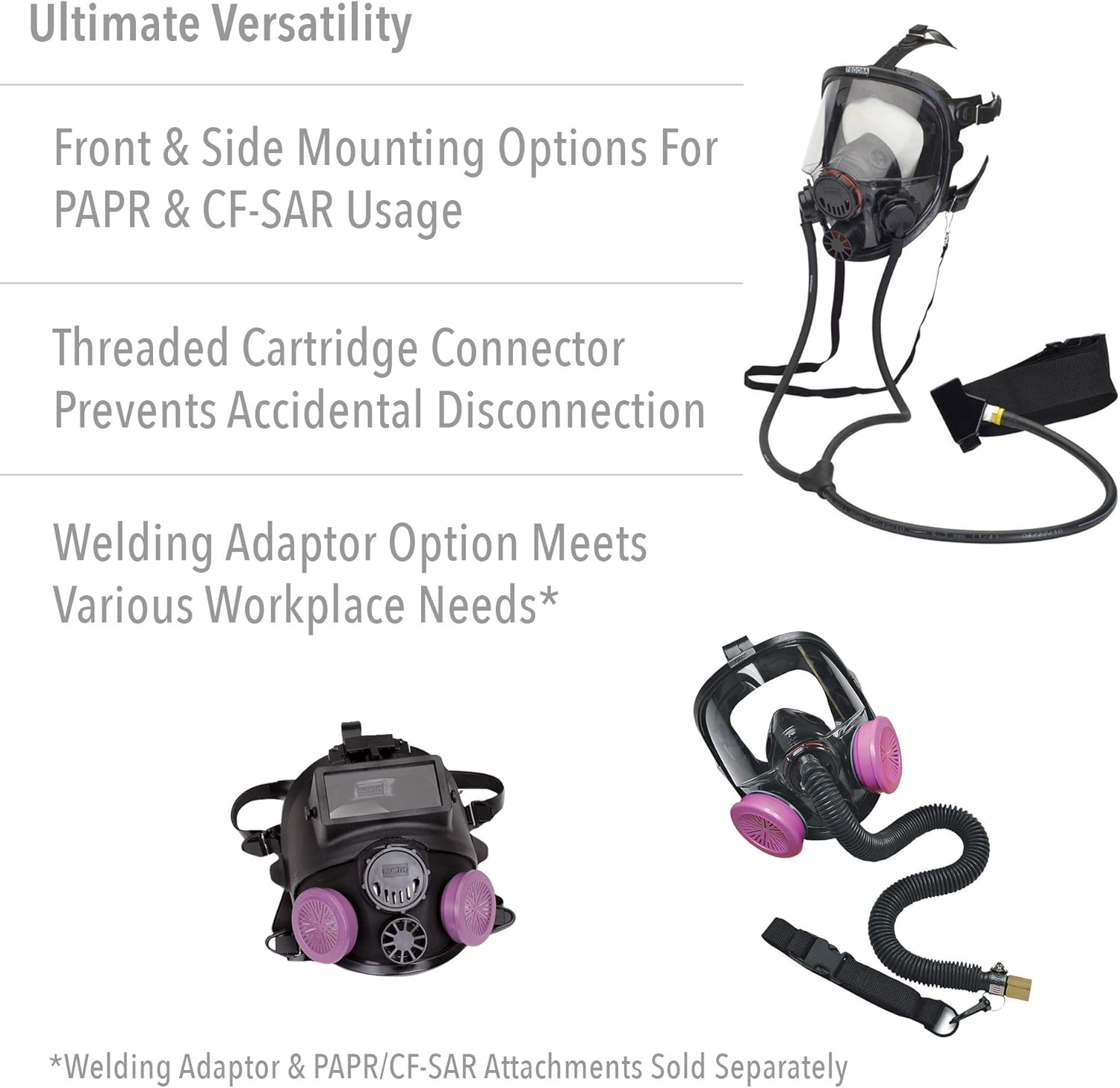

- NIOSH approved with PAPR and Supplied Air to offer flexibility in the workplace
Replacement parts & accessories:
Accessories
• 8419 - Flame-resistant shroud for welding, covers head, neck and shoulders (fits over 76008ASW and 76008AW)
• FMBM10 - Shade 10 ADF Filter for respiratory welding attachment (for use with 76008ASW and 76008AW)
• FMBM11 - Shade 11 ADF Filter for respiratory welding attachment (for use with 76008ASW and 76008AW)
• 80836A - Peel-away cover lens, clear, for use with 7600 Series Full Facepieces
• 80944A - Anti-Fog pad, individually wrapped for use with 7600 Full Facepieces, 10/Pkg
• 80100 - Plastic spectacle kit, no lenses for use with 7600 Series Full Facepieces
• 760024 - Spectacle kit, metal with spring, no lenses for use with 7600 Series Full Facepieces
Replacement parts
• 770016 - Cartridge Connector Repl 2/Pk
• 770017 -Inhalation Valve 6/Pk
• 770018 -Exh Valve Flap 4/Pk
• 80798-H5 -Upper & Lower Clamps For FFP
• 80843a - Screw Lens Clamp 2/Pk
• 80844a - Nut For Lens Clamp
• 80814a - Inhalation Valve Seat Silicone 2/Pk
• 80871a - Grommet For FFP Cart Connector 2/Pk
• 80840-H5 - Facepiece Seal, Silicone, Med/Lrg
• 80801-H5 - Facepiece Seal, Silicone, Small
• 80845 - Headstrap 7600 No Hardware
• 80846a - Hardware For Headstrap 7600
• 80847a -Bail For Headstrap 7600
• 80848-H5 -Neckstrap For Silicone FFP
• 80849-H5 -Lens
• 80852-H5 - Exhalation Flange
• 80815 - Oral Nasal Cup, Med/Large
• 80800 - Oral Nasal Cup, Small
• 80855 - Locking Ring
• 80856 - Speaker Diaphragm
• 80857A - O-Ring, Speaker Diaphragm
• 80858 - Housing, Speaker Diaphragm
• 80861A - O-Ring, Speaker Diaphragm Housing
• 80862 - Nut, Adapter
• 80863 - Exhalation Valve Seat
• 80867 - Exhalation Valve Guard
• 80871A - Grommet
Configuration
- 5-Point HeadStrap
- Threaded
- N-Series
- Standard
Material
- Silicone
- Polycarbonate
Standards & Certifications
- NIOSH, ASNZS 1716:2012 Lic 0562
- P100
Protection
- Gas, Vapors, Smoke
Dimension & Weight
- Medium/Large
- Small
Applicability
- North Cartridges/Filters CA-201 PAPR AND CF2007 SAR
Other
- Honeywell
- 7600 Series
- Yes
Features & Benefits
- 100% Silicone Facepiece is Soft and Flexible to Provide Workers with a Comfortable and Secure Fit. Wide Sealing Area Fits More Facial Types. Nose Cup Provides Less Dead Air Space and Channels Exhaled Breath Out. Speech Diaphragm is Standard to Amplify Workers’ Conversations. Wide Panoramic Lens Provides Optimal Field of Vision in All Directions. Also Available with Welding Adaptor. Can Be Adapted to Papr or Supplied Air for Greater Flexibility in The Workplace.
